Product Description
Carbide Rotary Files/Tungsten Carbide Burrs is a new tape cutter
with hign effciency,instead of granding wheel bur with handle. It
can cut and process various kinds of metal(including hardened
steel)and nonmatal(such as marble)with hardness up to HRC less then
70.
Product Parameters
Material | 100% Tungsten Carbide Raw Material |
Grade | FK07 |
Density | 14.60-14.8g/cm³ |
Application | weld preparation, weld smoothing, deburring, chamfering,
deflashing, and scale removal, wood carving, farriers,
metalsmithing, |
Hardness | 91.4-94 HRA |
TRS | 2400-2800MPA |

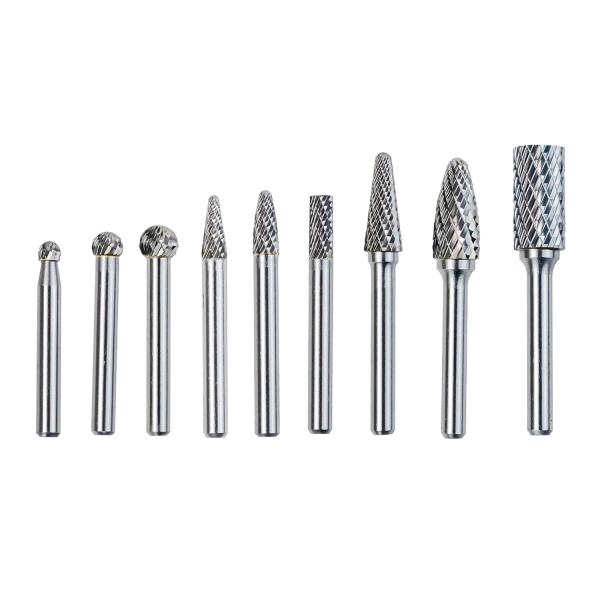

Model | d1 | L | d2(holder) |
SA-5 | 1/2 | 1 | 1/4 |
SA-3 | 3/8 | 3/4 | 1/4 |
SC-3 | 3/8 | 3/4 | 1/4 |
SC-1 | 1/4 | 5/8 | 1/4 |
SD-3 | 3/8 | 5/16 | 1/4 |
SD-1 | 1/4 | 7/32 | 1/4 |
SF-5 | 1/2 | 1 | 1/4 |
SF-3 | 3/8 | 3/4 | 1/4 |
SA-1 | 1/4 | 5/8 | 1/4 |
SD-2 | 3/8 | 1/4 | 1/4 |
SE-3 | 3/8 | 5/8 | 1/4 |
SL-3 | 3/8 | 1 | 1/4 |
SG-1 | 1/4 | 5/8 | 1/4 |
SH-1 | 1/4 | 5/8 | 1/4 |
Application

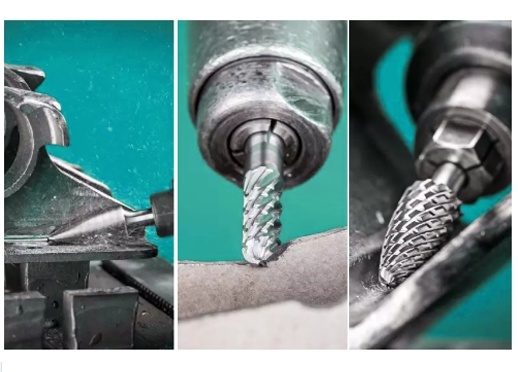

1. Tungsten carbide burs can be used in a wide variety of fields,
such as dentistry, diamond cutting, jewelry making, and auto head
porting, sculpting, welding, and windshield repairing.
2. Tungsten carbide burs can be used with both electrically-powered
and pneumatically-powered hand-held toolsto cut materials like
aluminium, brass, titanium alloys, cast iron, copper, zinc alloys,
bronze, nickel, various plastics, alloy steels, etc. They also can
be used on a wide range of pneumatic, electric and flexible drive
tools.
Our Advantages
1. Long service life
2. High cutting capacity
3. Effective freehand stock removal
4. Weld preparation and removal
5. High safety during working
6. Easy operation
FAQ
should we pay attention to when we use it?
1. Speed /RPM
The speed at which you use your carbide burrs in your rotary tool
will depend on the material you're using it on and the contour
being produced but it's safe to say you do not need to exceed
speeds of 35,000 RPM.
2. Apply only a little pressure
As with all drill bits and burrs, let the burr do the work and
apply only a little pressure otherwise the cutting edges of the
flutes will chip away or become smooth too quickly, reducing the
life of your burr.
3. Keep The Carbide Burr On The Move
When using your carbide burr try not to keep it still for too long
as this will prevent the burr from digging and jabbing into your
material causing unsightly marks and roughness.
What is the Specification of your Carbide Burrs?
How to produce the Carbide burs?
We can make chemical and geometry analysis for your carbide burs
material and make grinding test in our professional laboratory
center.
About us
We,Chengdu Fengke Carbide Tools Co., Ltd, is one of the leading
carbide manufacturers of China .
Established in 2005, we specialize in Tungsten Carbide products
over 14years. Our products consist of all kinds and grades of
carbide, mainly for cutting blades,rotary carbide blank,carbide
circular knife,carbide scraper blades and handles so on.
Our total production area is 15,000 m2 and production Capacity is
over 8,000,000-10,000,000pcs/ Year.
We can also customize all kinds of tungsten carbide products
according to your drawing or samples.
Finally we always have stock available.
Address:No.21 Hengsheng Road, Shaqu Town, Dayi County, Chengdu,
Sichuan Province, China
How to Pack&Ship the products?
PACKAGE:
Standard export carton packing
DELIVERY TIME:
2-20 days after confirming order,detail delivery date should be
decided according to
production season and order quantity
